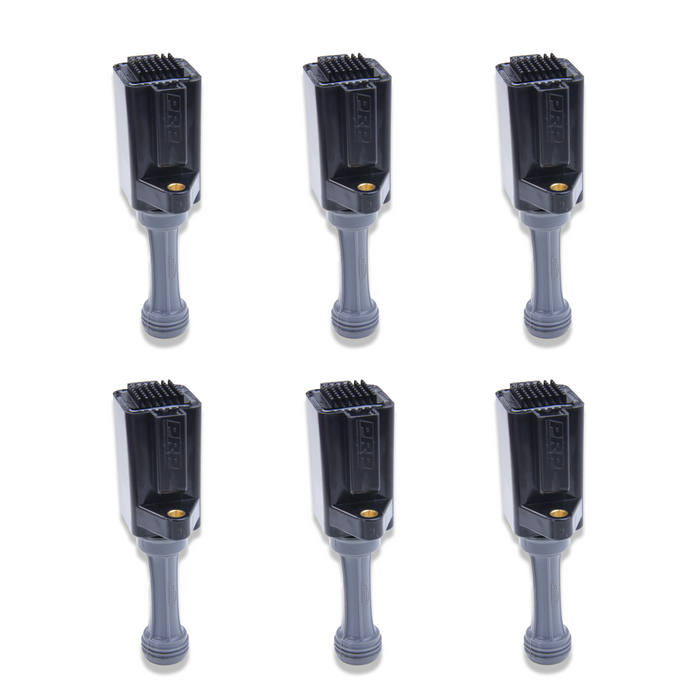

Everyone has been patiently waiting for the new PRP IGN-35A Ignition Coil release....well wait no longer!
We’ve had these in testing in a handful of 1000+Hp RB’s for around a year now and we decided we were ready to go into full production after consistent success after we ironed out the bugs. These monsters put out over double the punch of a genuine R35 coil and are rated to 4000hp (in a 6 cylinder set up) I know that seems excessive but even in your 1000hp set up the results are impressive.
As we had complete control of the housing without constraints, we were able to modify primary coil configuration to make the current draw ~20% more efficient than your regular IGN1A coilpack. This allowed our 3 pin circuit to still utilise our current r35 coil harnesses we supply without requiring significant wiring upgrades, it also takes the R35 3 pin R35 connectors.
They allow for a more efficient and longer burn, as offered by the IGN1A, and since the IGN1A is the most powerful smart coil we’ve ever tested we decided to combine them as an upgrade to our extensive line of R35 coil kits.

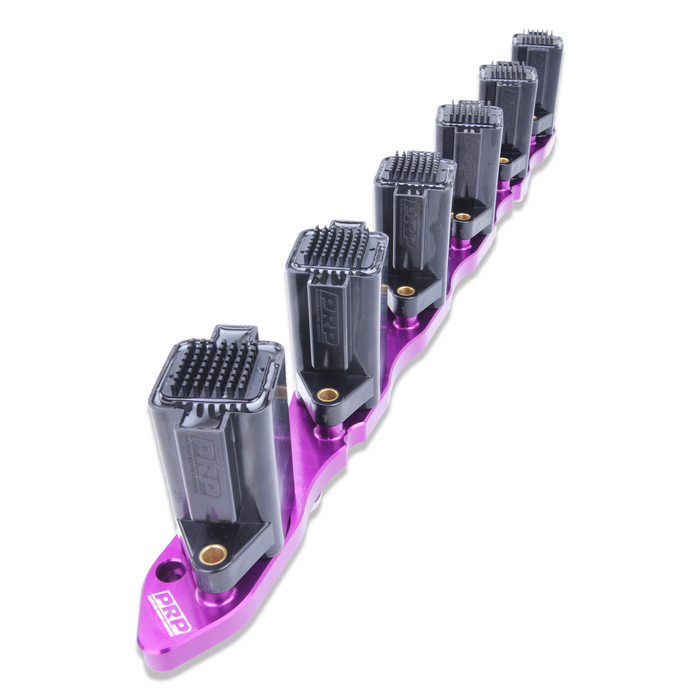

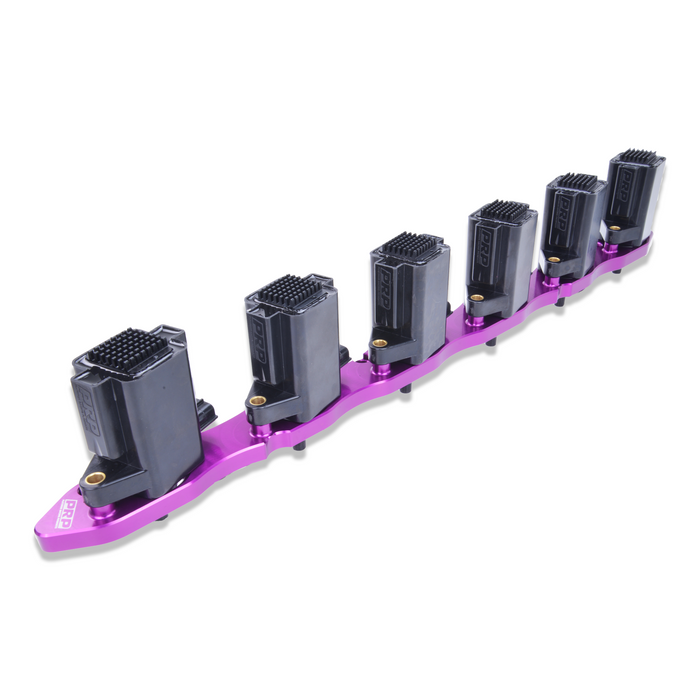

* Billet Alloy anodized bracket is engineered to fit all ignition coils in a way that allows user-friendly access to all the coil plugs and spark plugs in a non-invasive manner.
* Kit now includes custom height quality one-piece silicone injected spark plug stalks that seal the spark plug well, avoiding water pooling and inherent engine misfires.
* Custom made springs already fitted inside the stalks make for extremely fast installation as well as no trimming of springs required.
* Bench tested, club motorsport grade branded harness, high temp Tefzel wire and crimp joins used with OEM connectors and glue lined heat-shrink
* Bolt kit included caters for the 6 ignition coils and billet bracket to head.
* Standard colours are now Black, Purple, Red, Silver, Blue with custom order colours Gold, Teal, Green, Teal, Orange, Grey. * Lifetime warranty on all PRP products.
RBLOOM7 Bosch igniter/square connector (rare), please message us for this loom
CLICK HERE FOR THE RB IDENTIFICATION FLOW CHART

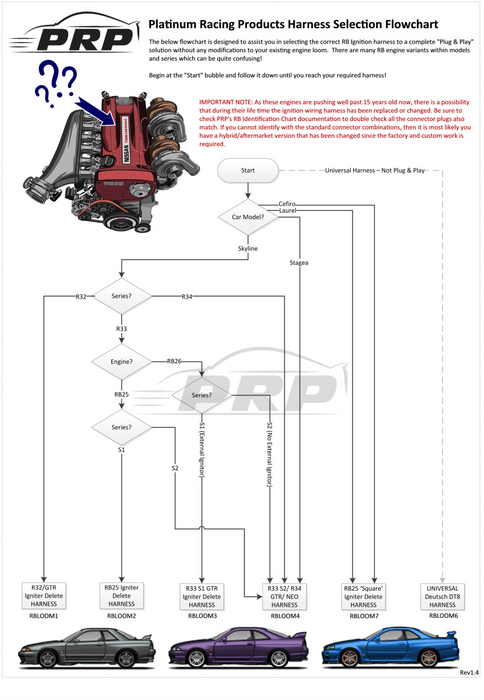

CLICK HERE FOR THE RB LOOM FLOWCHART
***Please note if you chose Optional custom colour, please let us know on check out what colour you would like***
