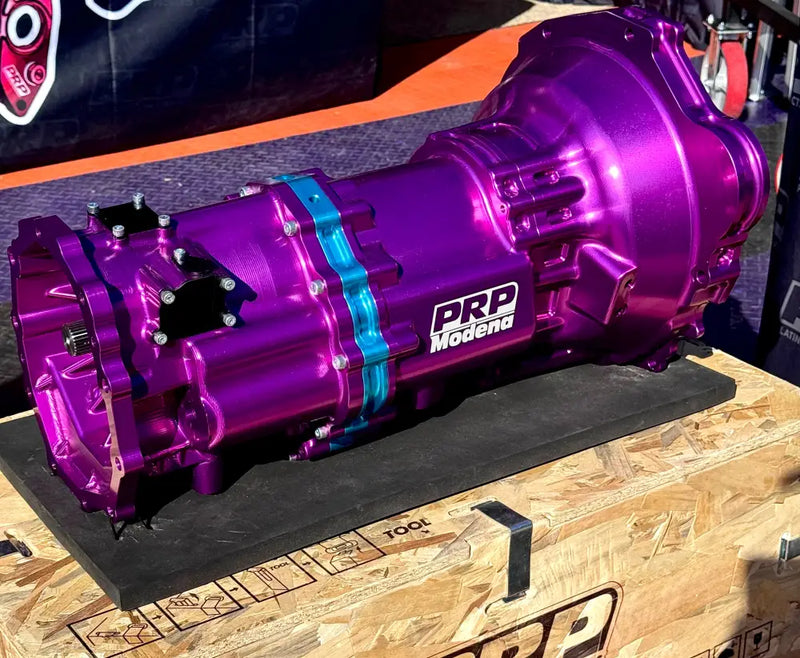

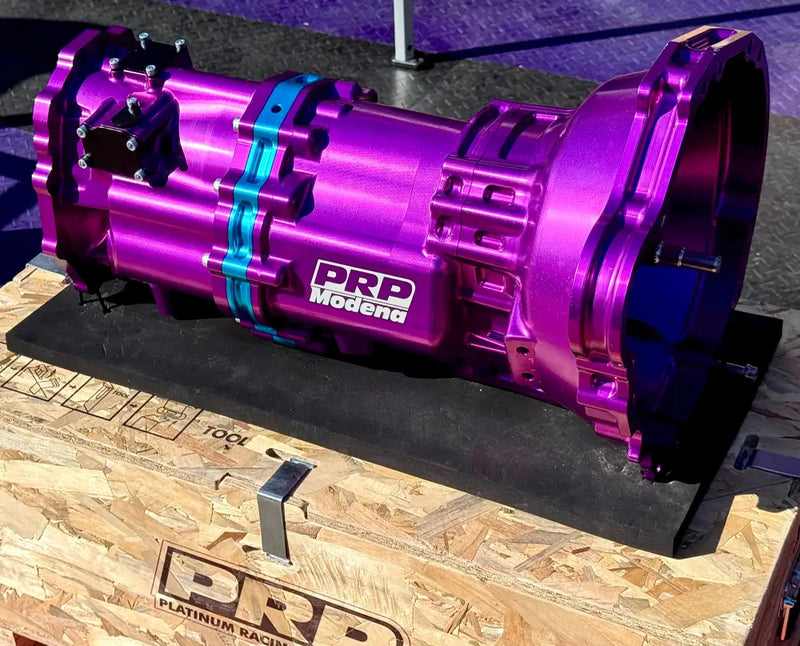

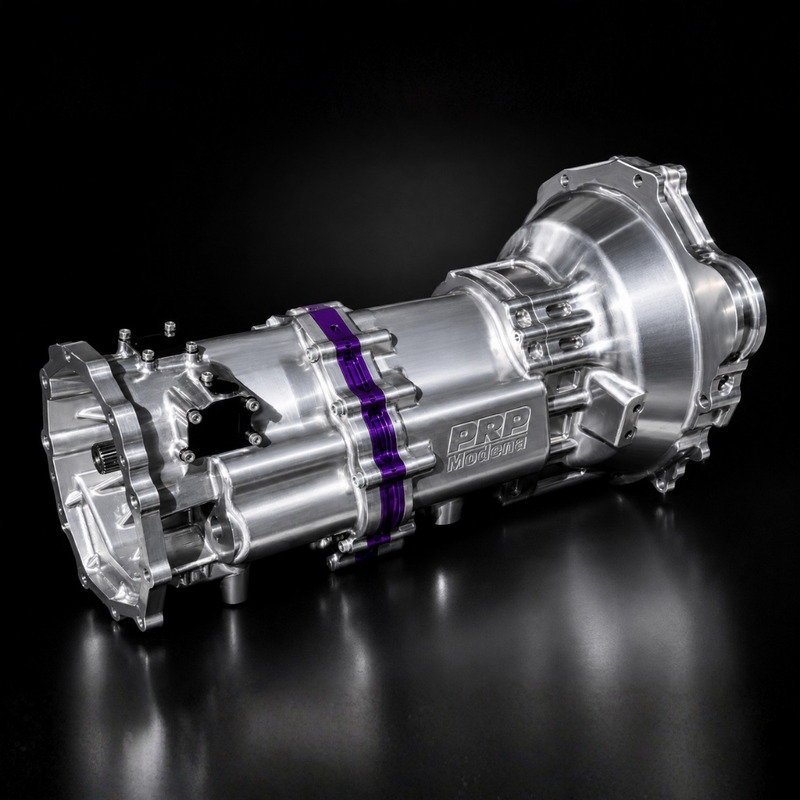

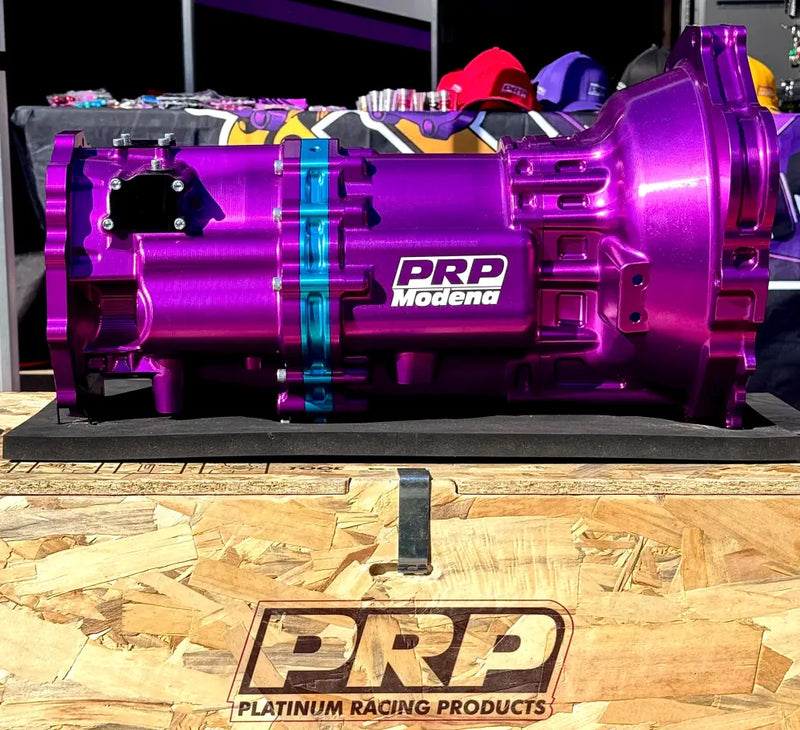

Born from a collaboration between Platinum Racing Products and Modena Engineering, the PRP PM-6S-R 6-Speed Sequential Gearbox represents the next evolution in drivetrain performance for the Nissan GT-R.

Designed, developed, and machined entirely in Australia using state-of-the-art equipment, the PM-6S-R combines precision billet construction with lightweight strength and motorsport-proven engineering. Every gearbox is built to withstand the demands of high-powered street, drag, circuit, and drift applications.

The modular three-piece housing consists of a bellhousing, sandwich plate, and output shaft casing, delivering exceptional strength while simplifying servicing and maintenance.

By combining Modena Engineering’s expertise in precision gear cutting and shaft manufacturing with PRP’s innovation, rapid prototyping, and commitment to performance, the PM-6S-R delivers exceptional quality and reliability at a considerably lower price than comparable sequential systems.

Every PRP gearbox is also backed by a lifetime warranty—giving drivers complete confidence both on and off the track.

Key Features

• Six-speed sequential design for fast, precise gear changes
• Developed in collaboration with Modena Engineering
• Designed and manufactured in Australia
• Precision-machined billet construction
• Modular three-piece housing for strength and serviceability
• Suitable for high-powered street, drag, circuit, and drift applications
• Lifetime warranty exclusive to PRP gearboxes

Standard Configuration

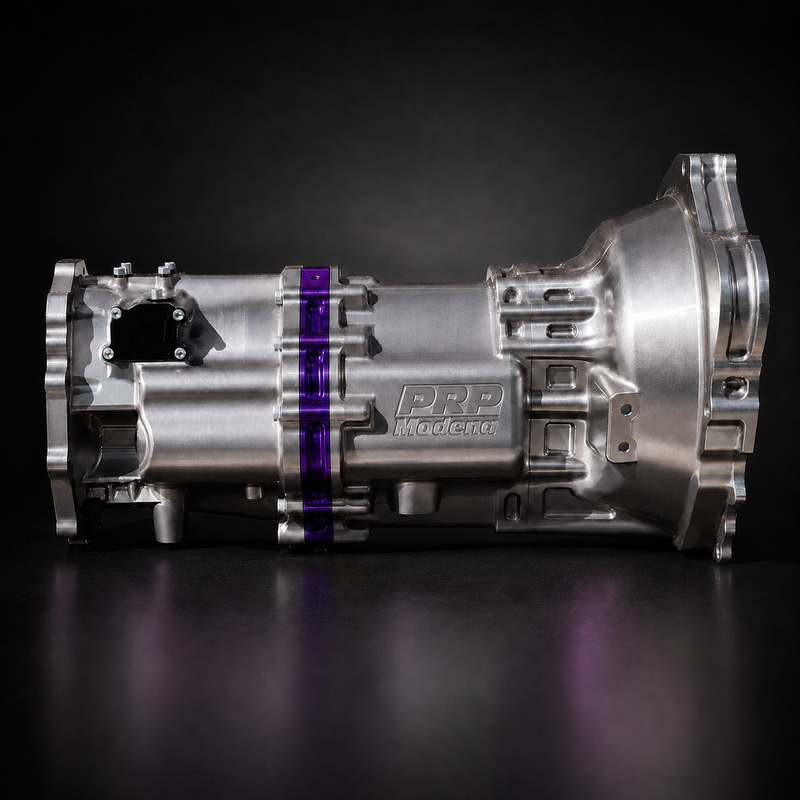

• Silver Casing / Bellhousing with a purple sandwich plate (Standard configuration)
• Custom colour combination supplied at $500 additionally
• Choice of helical or straight-cut gears
• Choice of 1:1 or 1:1.17 drop gear ratio
• Nissan input shaft spline available (GM available)
• Custom colours available for an additional $500
• Custom gear ratios for drag, circuit, or drift applications will be available in the near future

Ratio Options

Standard 1:1 Drop Gear

Drop gear: 24:24 (1:1)

• 1st: 14:33 — 2.36
• 2nd: 17:31 — 1.82
• 3rd: 19:28 — 1.47
• 4th: 21:26 — 1.24
• 5th: 23:24 — 1.04
• 6th: 24:22 — 0.92

1:1.17 Drop Gear

Drop gear: 23:27 (1:1.17)

• 1st: 14:33 — 2.767 overall
• 2nd: 17:31 — 2.14 overall
• 3rd: 19:28 — 1.73 overall
• 4th: 21:26 — 1.45 overall
• 5th: 23:24 — 1.225 overall
• 6th: 24:22 — 1.076 overall

Gear and Drop Gear Options

All four configurations are available at the same price:

• Helical gears with 1:1 drop gear — approximately 8-week lead time
• Straight-cut gears with 1:1 drop gear — approximately 12-week lead time
• Helical gears with 1:1.17 drop gear — approximately 8-week lead time
• Straight-cut gears with 1:1.17 drop gear — approximately 12-week lead time

Transfer Case Options

Transfer cases are sold separately and are available in an OEM-style configuration. PRP can also rebuild your existing transfer case.

For transfer case enquiries, custom colours, input shaft options, or custom ratio requirements, please contact info@platinumracingproducts.com.

The PRP × Modena Partnership

The PM-6S-R marks a new chapter for both brands, combining Modena Engineering’s precision gear-cutting and shaft-manufacturing expertise with PRP’s relentless innovation and commitment to lifetime-backed performance products.

The result is a world-class sequential gearbox engineered to deliver outstanding performance, reliability, and value for GT-R enthusiasts worldwide.
