Toyota 4AGE 16/20 Valve Ignition Coil Kit

Save 10% Save 10%
Original price $440.00
Original price $440.00 - Original price $1,090.00
Original price $440.00
Current price $396.00
$396.00 - $981.00
Current price $396.00

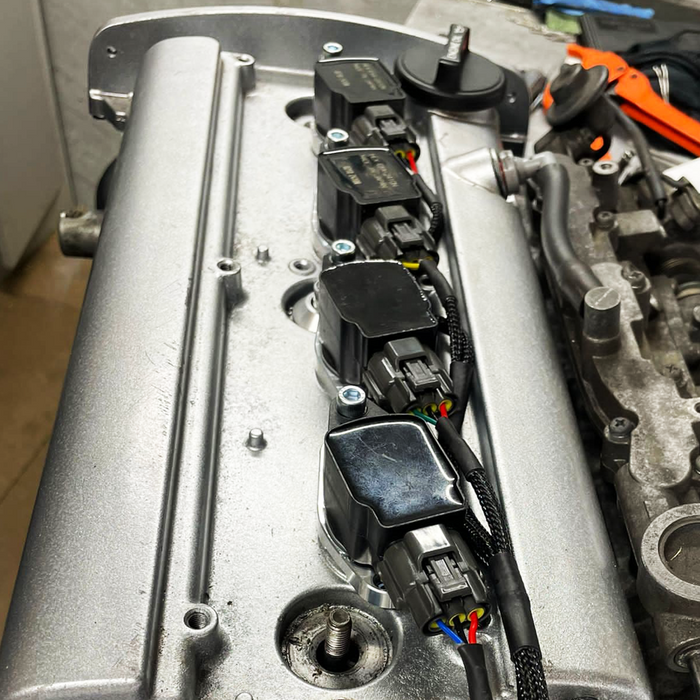

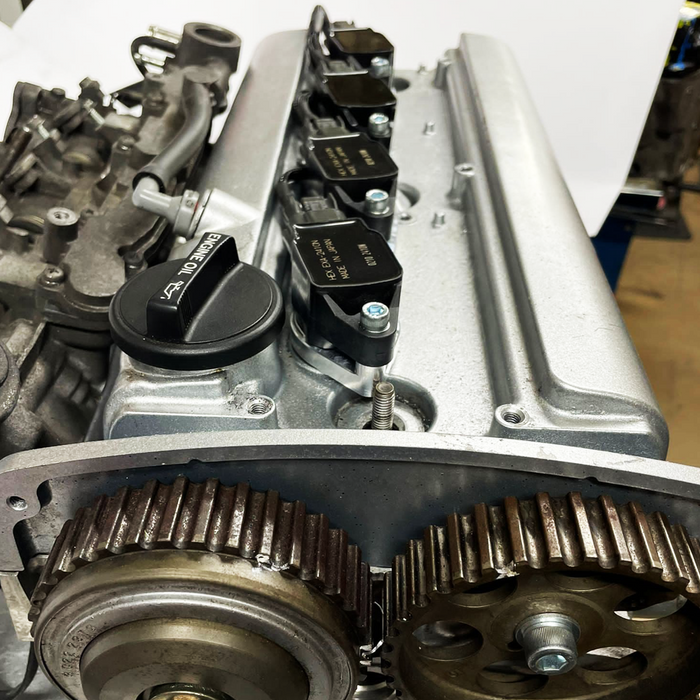

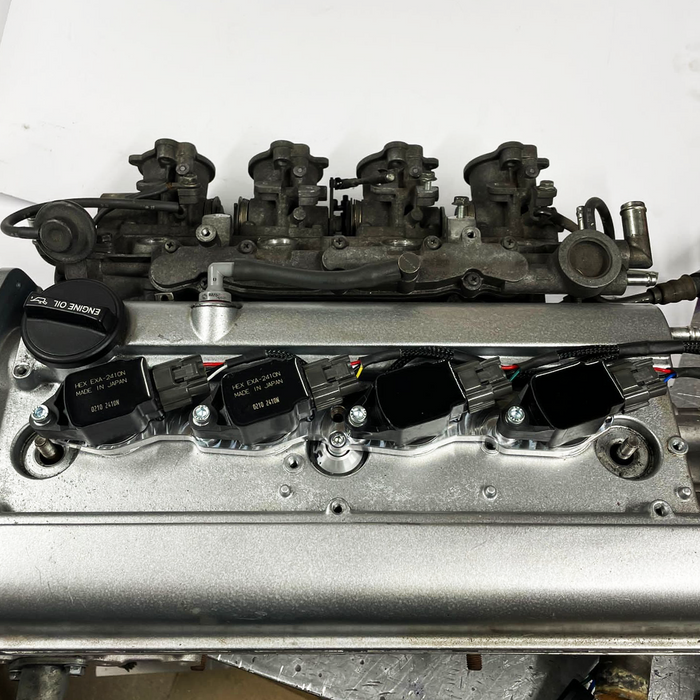

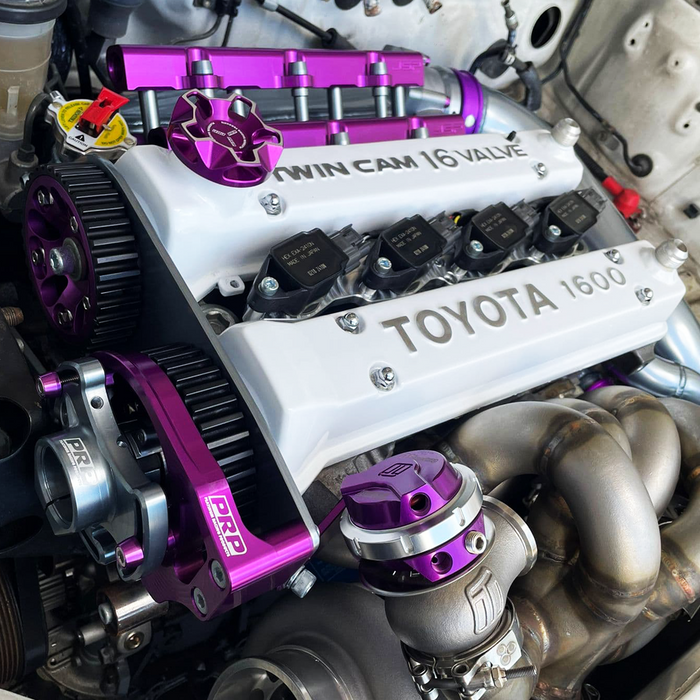

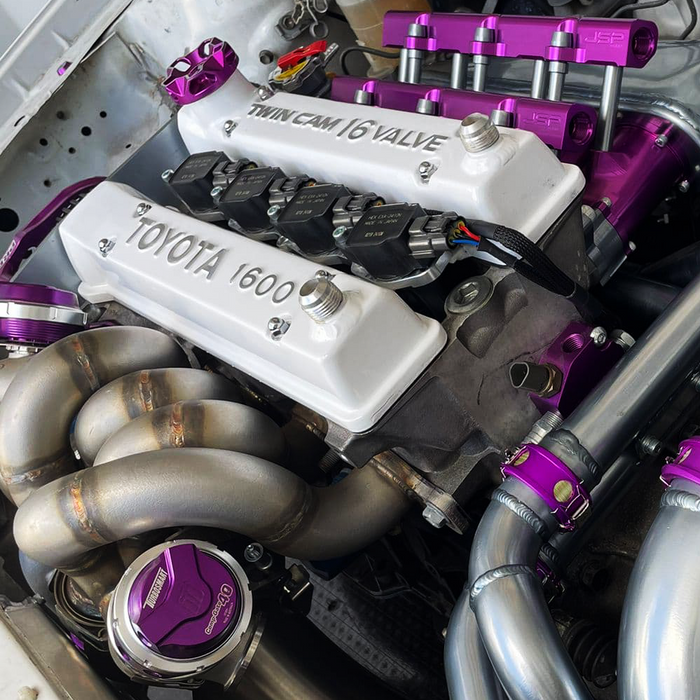

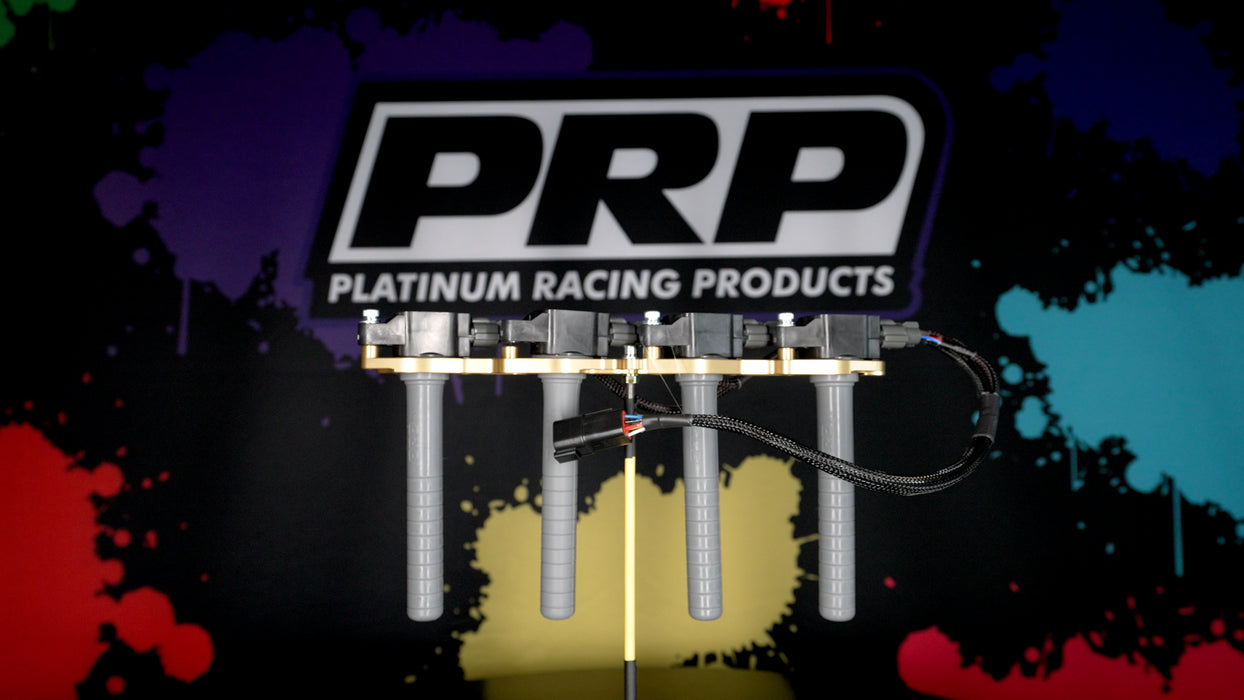

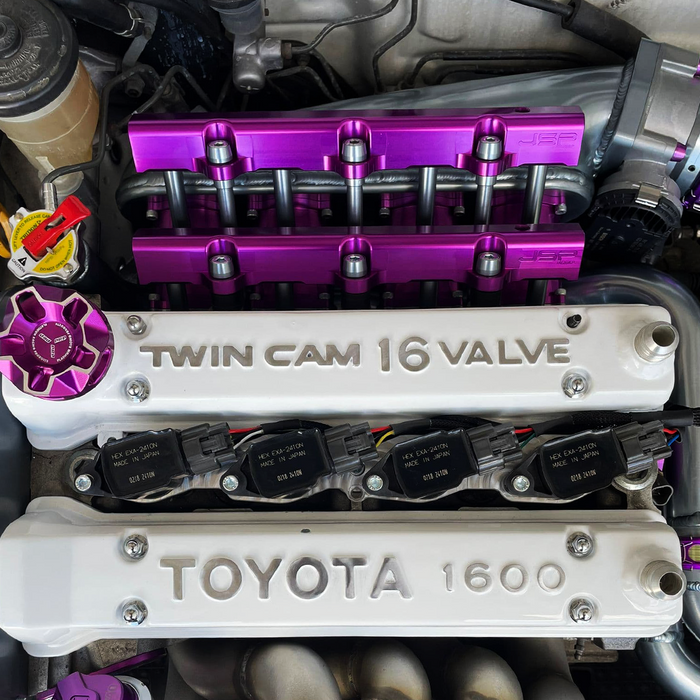

This new generation coil kit has been specifically designed as an upgraded direct drop-in replacement for all 4AGE/ZE engines covering both 16 Valve & 20 Valve cam covers made in this delightful Toyota engine range.

These coil kits incorporate Genuine Hitachi Astemo R35 GTR Ignition coils and put out much higher than OEM power output with its primitive single coil through distributor system.

This R35 coil kit can be used with all aftermarket ECU’s available after converting to coil on plug and be run in either batch fire or sequential ignition, to maximize performance use the dwell data that can be found on our web page.

Key Features:

  • Billet Alloy anodized bracket is engineered to fit all ignition coils in a way that allows user-friendly access to all the coil plugs and spark plugs in a non-invasive manner.
  • Kit includes custom height quality one-piece silicone injected spark plug stalks that seal the spark plug well, avoiding water pooling and inherent engine misfires.
  • Custom-made springs already fitted inside the stalks make for extremely fast installation as well as no trimming of springs required.
  • Coil kit fits well under the valley cover without ANY modification.
  • Bench tested, club motorsport grade branded harness, high temp Tefzel wire and crimp joins used with OEM connectors and glue lined heat-shrink
  • Genuine OEM Hitachi coils are rated to 1800 hp and come with a 1-year warranty
  • Bolt kit included caters for the ignition coils and billet bracket to head
  • Standard colours are now Black, Purple, Red, Silver, Blue with custom order colours Gold, Teal, Green, Teal, Orange, Grey.
  • FREE Upgrade to Splitfire Direct Ignition Coilpacks

 * All parts sold separately

* Lifetime warranty on all PRP products.
