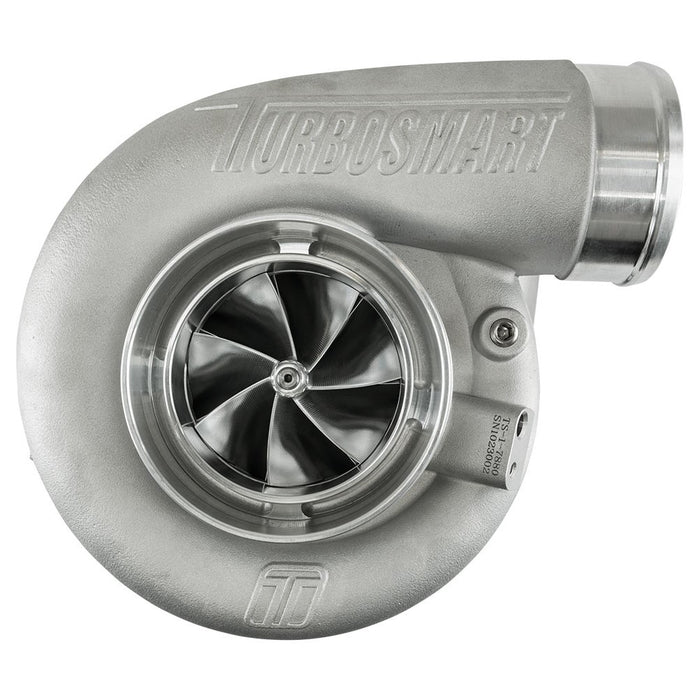

Oil Cooled 6870 Turbocharger T4 0.96 A/R
Introducing the Revolutionary 6870 Ball Bearing Turbocharger by Turbosmart!
Get ready to experience a new era in the world of performance automotive with Turbosmart's latest range of turbochargers. These cutting-edge turbochargers are designed to take your vehicle's performance to the next level, offering a range of options to suit your specific needs and preferences.
Whether you're a professional racer or a passionate car enthusiast, Turbosmart's new range of turbochargers will help you achieve unparalleled power, efficiency, and responsiveness. It's time to experience the future of performance automotive with Turbosmart!
Specs:
Cooling: Oil Cooled
Horsepower Rating: 990HP
Compressor Wheel Exducer: 68mm
Turbine Wheel Exducer 70mm
Comp Cover Inlet: 4"
Comp Cover Discharge: 2.5"
Turbine Housing Inlet: T4
Turbine: Housing Discharge: 3.00" V-Band
SKU: TS-1-6870T4096E
ETA: Early December 2023
Features
Lightweight Rotating Assembly for Fastest Spool
Aggressive Aerodynamics for Increased Air Velocity
Built in Speed and Pressure Reference Ports
Smaller and Lighter Than the Competition
Proprietary Dual Ceramic Ball Bearing System
Oversized Shaft Hub for Improved Oil Sling
310s Hi Temp Stainless Steel Investment Cast Turbine Housing
T14 Inconnel Turbine Wheel
2618-T6 Forged and CNC Milled Compressor Wheel
Benefits
Proprietary dual ceramic ball bearing system, oversized shaft hub with drastically improved oil sling, dual gas rings for improved gas sealing, optimised compressor backplate and compressor wheel integration for improved air management, tapered compressor wheels for increased strength, one piece integrated backplates for improved chassis rigidity.
Turbosmart compressor housings are designed with velocity in mind to improve cylinder filling. Turbine housings are designed to compliemt Turbosmart's unique low pressure turbine wheel aerodynamics and reduce exhaust back pressure. 2618-T6 forged and CNC milled compressor wheels designed with aggressive aerodynamics leverage the ultra responsive bearing and shaft combination for increased airflow at all shaft speeds.
Lightweight, aluminium compressor covers feature CFD drive and optimised A/R designs with anti-surge inlets, built-in speed and boost reference ports.
HP Rating
990HP
