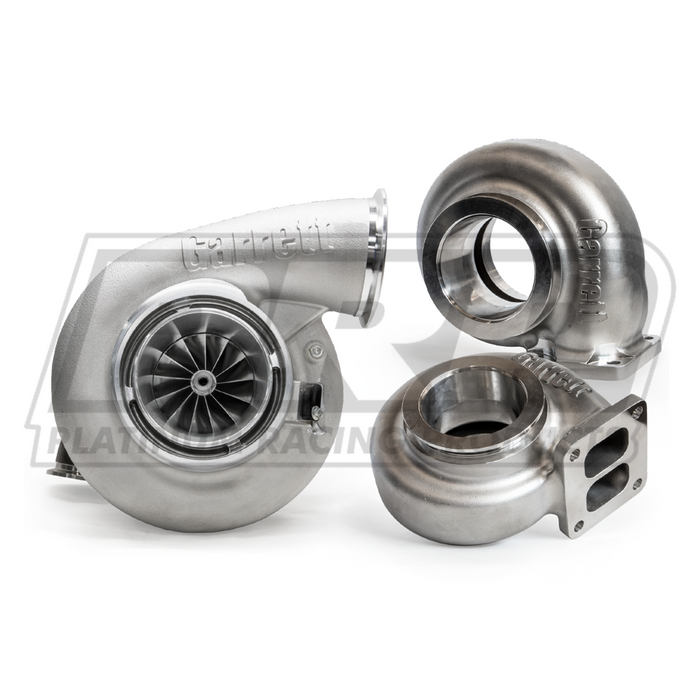

Garrett - G Series G45-1125

Save up to $490.00 Save $301.00
Original price $5,700.00
Original price $5,700.00 - Original price $6,489.00
Original price $5,700.00
Current price $5,399.00
$5,399.00 - $5,999.00
Current price $5,399.00
  • Features

    • G45-1125 compressor aero increases flow up to 10% (compared to GTX4502R 67mm)
    • 67mm compressor inducer | 102mm compressor exducer
    • Dual ceramic ball bearing with steel cages
    • G Series turbine aero increases flow 14% (compared to GTX45R)
    • Inconel turbine wheel with 89mm inducer flows up to 56 lbs/min
    • Lightweight aluminum backplate
    • Fully machined speed sensor and pressure ports
    • Water fittings included with supercore
    • Stainless steel turbine housings available in T4 divided inlet
    • Sized for drag racing classes: Sport Front Wheel Drive, Ultimate Street, Super Street, Street Fighter

    G45-1125 Part Number: 888169-5003S

    WARNING: Maximum allowable turbocharger speed is 109krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed. Sensors sold separately. (click here for details)

    Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.
