Mitsubishi Evo 4-9 4G63 Ignition Coil Kit

Original price $295.00 - Original price $1,167.00
Original price
$295.00 - $1,167.00
Current price $1,167.00

Platinum Evo 4 to 9 Series Ignition Coil Kit

We have produced 2 EVO 4-9 Coil Kit's. The first kit has been specifically designed as a direct drop-in replacement for the OEM batch fire set up that simply cannot handle increased power modifications. The second is a sequential kit that is mainly suited for most aftermarket ECU setups.

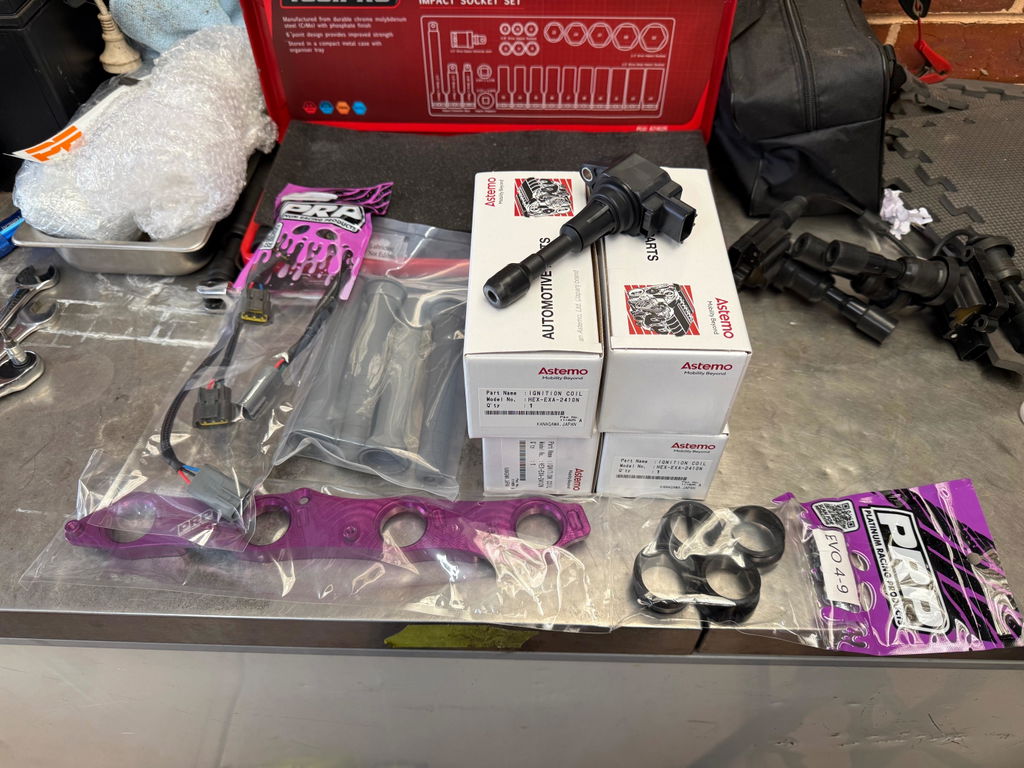

This coil kit incorporates Genuine Hitachi-Astemo Ignition coils and have the option of both sequential or batch fire looms.

Design Features:

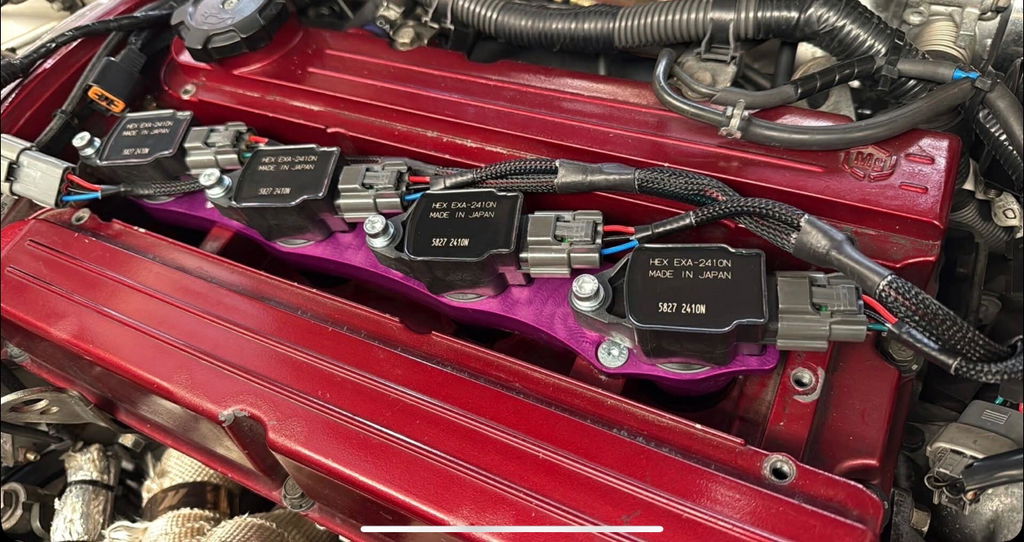

  • Next Gen Alloy bracket is engineered from 6061 billet to fit all VR38 or IGN-35A ignition coil packs within the rocker cover on the perfect angle to allow ease of removal for spark plug access.
  • The Next Gen bracket also orientates all ignition coil packs the same way to ensure installation of a wiring loom is trouble free
  • Included billet spark plug tube inserts which don't allow any water down inside the spark plug tubes when washing down your engine bay
  • Coil kit fits under the valley cover without ANY modification.
  • All wiring looms are bench tested, club motorsport grade branded harness, high temp Tefzel wire and crimp joins used with OEM connectors and glue lined heat-shrink.
  • Kit includes our NEXT GEN one piece Silicone injection moulded stalks which eliminate any installation issues and make servicing easy.
  • Custom made springs already fitted inside the stalks make for extremely fast installation as well as no trimming of springs required.
  • Genuine Hitachi-Astemo ignition coils which are rated to 400hp per cylinder.
  • Bolt kit included caters for the 4 ignition coils and billet bracket to head

Diagram for Coils and loom : CLICK HERE

NOTE: Loom may vary slightly to items pictured. If you require specific information regarding the product please don’t hesitate to contact us.

Please leave a note in checkout as to what colour you want if custom colour selected
