Radium Phenolic Insulating Washer M8

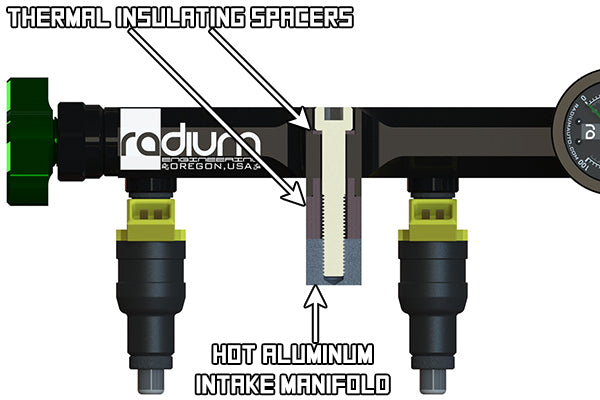

These press-fit spacers and washers are used with many Radium Engineering kits for thermally isolating the fuel rail from the engine.

NOTES:

1. These are sold individually. Double check how many are required prior to purchasing.
2. Spacer height measurement does not include press-fit insert length. Example: total height for 14-0482 Phenolic Insulating Spacer, 11mm is 17.3mm.
3. Mounting hardware is not included. However, most bolts are common and can be sourced in local hardware stores.

WASHER SPECIFICATIONS:

• Material: Phenolic Resin
• Outer Diameter: 14.5mm
• Inner Hole Diameter: 8.1mm
• Washer Thickness: 1.3mm
• Max Temperature: 265F
