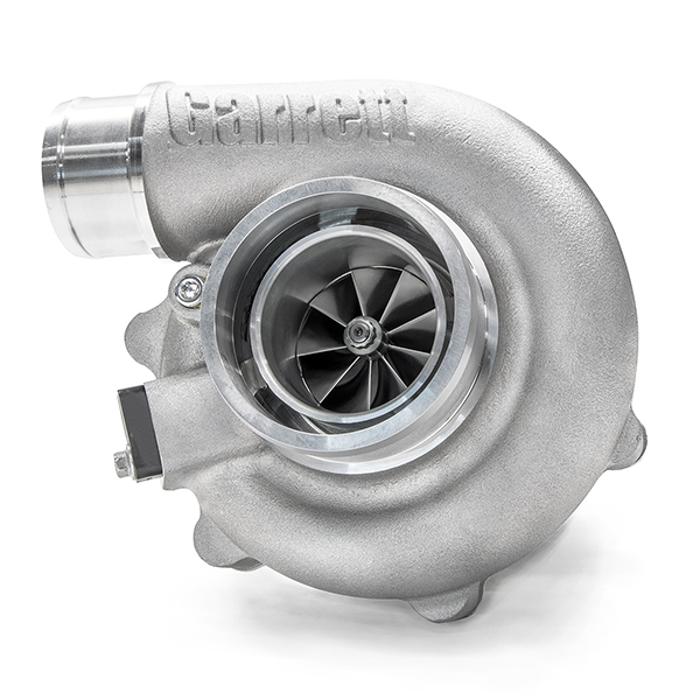

G Series G30-660 Reverse Rotation
by Garrett
SKU 880694-5001S
Original price
$1,096.81
-
Original price
$4,013.60
Original price
$2,726.16
$1,096.81
-
$4,013.60
Current price
$2,726.16
-
Features
- G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
- 54mm TURBOCHARGER COMPRESSOR WHEEL
- 79% MAXIMUM COMPRESSOR EFFICIENCY
- MAR-M ALLOY TURBINE WHEEL RATED UP TO 1050° C
- NEW TURBINE AERO PROVIDES HIGHER FLOW AND EFFICIENCY
- STAINLESS STEEL TURBINE HOUSINGS RATED UP TO 1050° C
- OIL RESTRICTOR AND WATER FITTINGS INCLUDED
- FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
- STANDARD ROTATION SUPERCORE 880693-5001S
- REVERSE ROTATION SUPERCORE 880694-5001S
- Read About Turbo System Optimization: A guide to setting up your turbocharger
- The maximum power stated for each turbocharger has been calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. Please consult with your local distributor before making a purchase.
Reference Data
The latest Garrett technologies featuring many advanced features.
G30-660 Reference Data | Compressor | Turbine | ||||||
---|---|---|---|---|---|---|---|---|
Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | ||
HP: 350-660 | Disp: 2.0L-3.5L | 54mm | 67mm | 65 | 0.7 | 60mm | 55mm | 84 |
G30-660 Reverse Rotation Supercore PN | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided | |
---|---|---|---|---|---|---|---|
880694-5001S | 740902-0100 | 0.83 | T3 | V-Band | Free Float | N | |
740902-0101 | 1.01 | T3 | V-band | Free Float | N | ||
740902-0096 | 0.61 | V-Band | V-band | Free Float | N | ||
740902-0097 | 0.83 | V-Band | V-band | Free Float | N | ||
740902-0098 | 1.01 | V-Band | V-band | Free Float | N | ||
740902-0099 | 1.21 | V-Band | V-band | Free Float | N | ||
G30-660 Standard Rotation Supercore PN | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided | |
880693-5001S | 740902-0092 | 1.06 | T4 | V-Band | Free Float | Y | |
740902-0090 | 0.83 | T3 | V-band | Free Float | N | ||
740902-0091 | 1.01 | T3 | V-band | Free Float | N | ||
740902-0086 | 0.61 | V-Band | V-band | Free Float | N | ||
740902-0087 | 0.83 | V-Band | V-band | Free Float | N | ||
740902-0088 | 1.01 | V-Band | V-band | Free Float | N | ||
740902-0089 | 1.21 | V-Band | V-band | Free Float | N |
