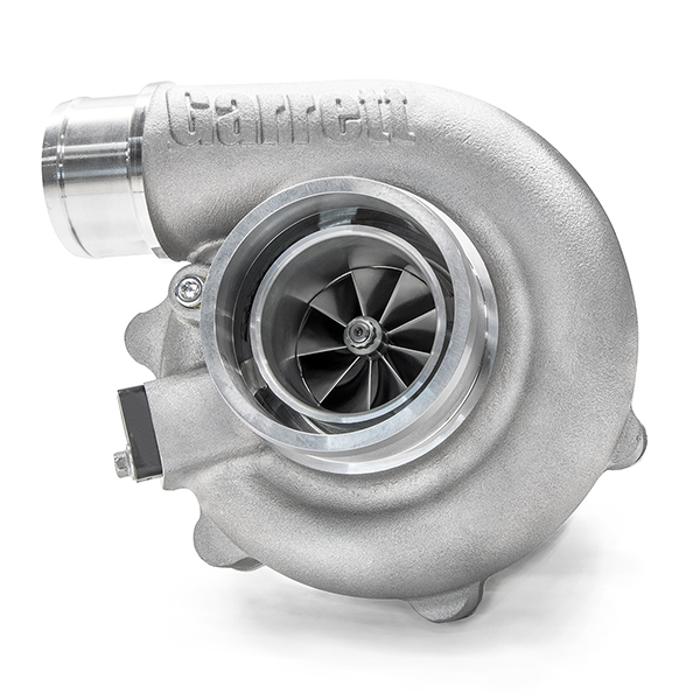

G Series G30-770 Reverse Rotation
by Garrett
SKU 880694-5002S
Original price
25,310.40 ฿
-
Original price
94,745.15 ฿
Original price
64,897.24 ฿
25,310.40 ฿
-
94,745.15 ฿
Current price
64,897.24 ฿
-
Features
- G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
- 58mm TURBOCHARGER COMPRESSOR WHEEL
- 76% MAXIMUM COMPRESSOR EFFICIENCY
- MAR-M ALLOY TURBINE WHEEL RATED UP TO 1050° C
- NEW TURBINE AERO PROVIDES HIGHER FLOW AND EFFICIENCY
- STAINLESS STEEL TURBINE HOUSINGS RATED UP TO 1050° C
- OIL RESTRICTOR AND WATER FITTINGS INCLUDED
- FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
- STANDARD ROTATION SUPERCORE 880693-5002S
- REVERSE ROTATION SUPERCORE 880694-5002S
- Read About Turbo System Optimization: A guide to setting up your turbocharger
- The maximum power stated for each turbocharger has been calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. Please consult with your local distributor before making a purchase.
G-SERIES G30 770 58MM REVERSE ROTATION
Reference Data
The latest Garrett technologies featuring many advanced features.
G30-770 Reference Data | Compressor | Turbine | ||||||
---|---|---|---|---|---|---|---|---|
Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | ||
HP: 475-770 | Disp: 2.0L-3.5L | 58mm | 71mm | 65 | 0.72 | 60mm | 55mm | 84 |
G30-770 Reverse Rotation Supercore PN | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided | |
---|---|---|---|---|---|---|---|
880694-5002S | 740902-0100 | 0.83 | T3 | V-Band | Free Float | N | |
740902-0101 | 1.01 | T3 | V-band | Free Float | N | ||
740902-0096 | 0.61 | V-Band | V-band | Free Float | N | ||
740902-0097 | 0.83 | V-Band | V-band | Free Float | N | ||
740902-0098 | 1.01 | V-Band | V-band | Free Float | N | ||
740902-0099 | 1.21 | V-Band | V-band | Free Float | N | ||
G30-770 Standard Rotation Supercore PN | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided | |
880693-5002S | 740902-0092 | 1.06 | T4 | V-Band | Free Float | Y | |
740902-0090 | 0.83 | T3 | V-band | Free Float | N | ||
740902-0091 | 1.01 | T3 | V-band | Free Float | N | ||
740902-0086 | 0.61 | V-Band | V-band | Free Float | N | ||
740902-0087 | 0.83 | V-Band | V-band | Free Float | N | ||
740902-0088 | 1.01 | V-Band | V-band | Free Float | N | ||
740902-0089 | 1.21 | V-Band | V-band | Free Float | N |
