Nissan RB Coil LOOM ONLY 'Pick-a-Variant'

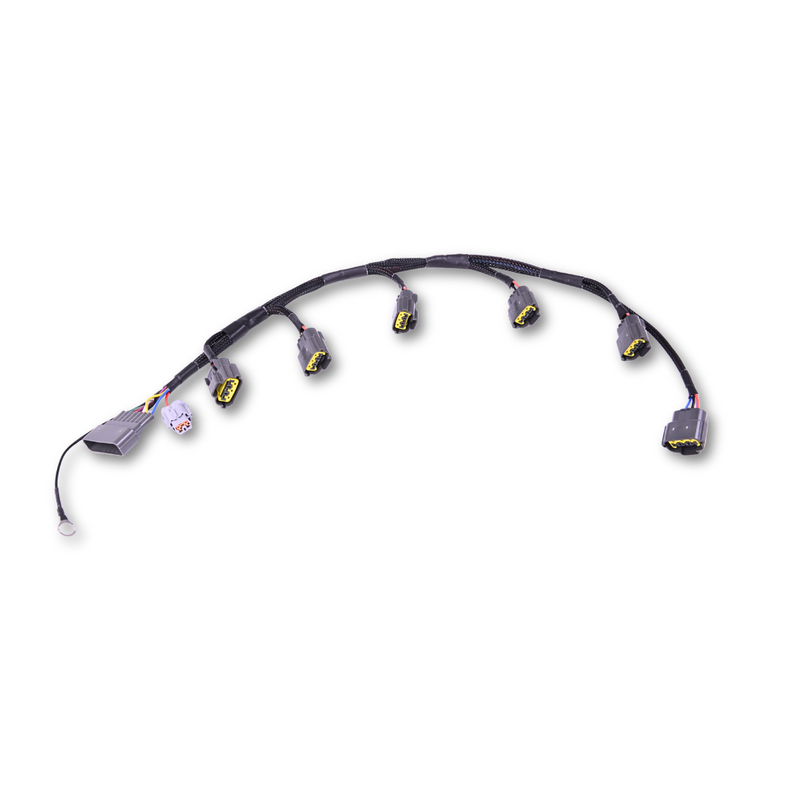

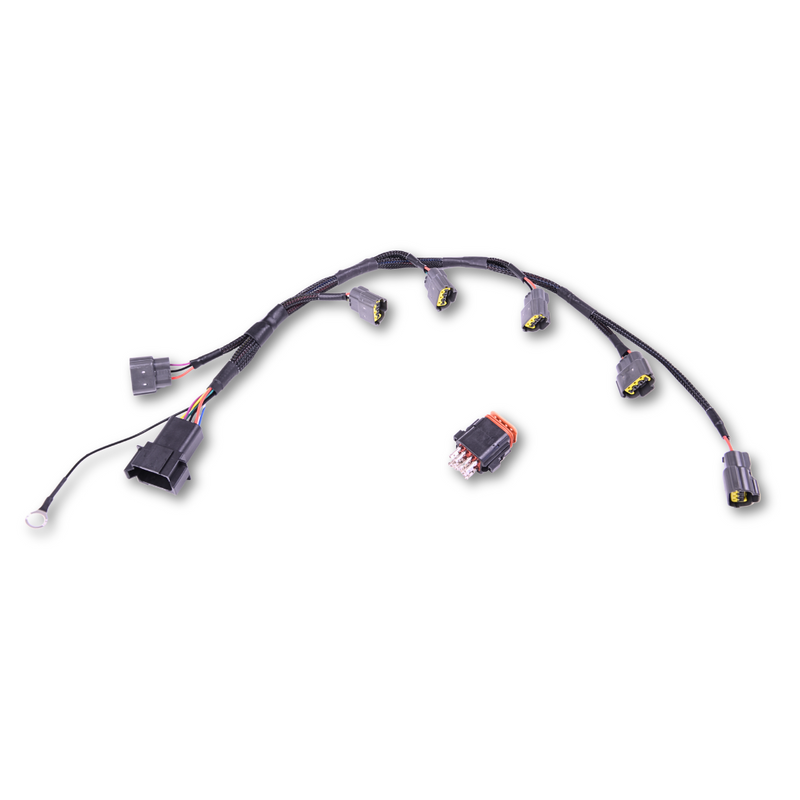

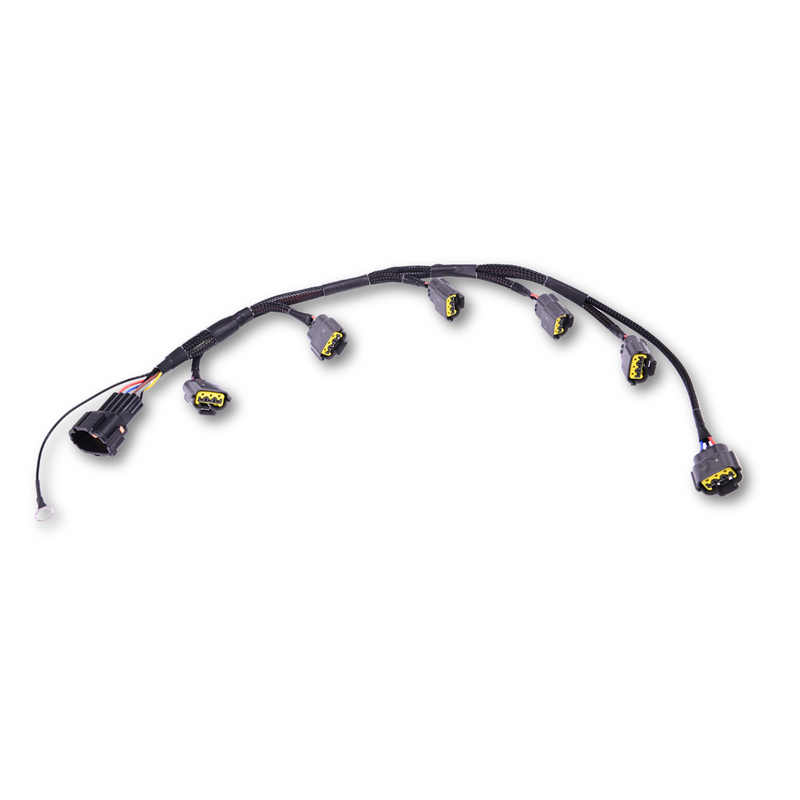

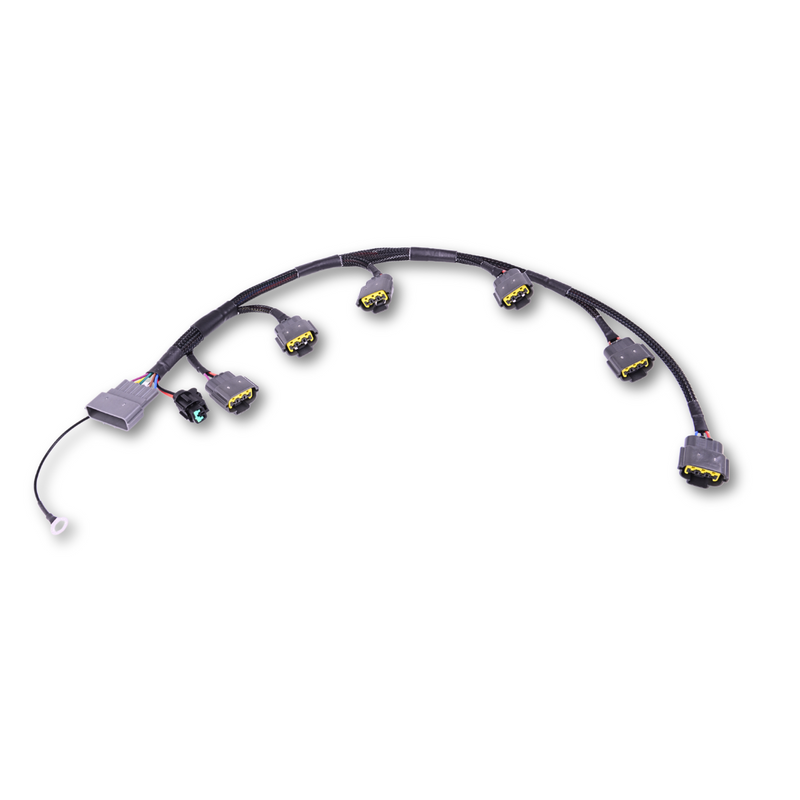

RB TWIN CAM COIL LOOM to suit the VR38 coilpacks from Nissan R35 GTR
* Bench tested, club motorsport grade branded harness, perfectly spaced, high temp Tefzel wire and crimp joins used with OEM connectors and glue lined heat-shrink.
RB HARNESS FLOW CHART
- R32 ALL VARIANTS - RBLOOM1 - 6pin igniter delete big 3pin grey power
- R33 GTST Series 1 - RBLOOM2 - 7pin igniter delete small 2pin grey power
- R33 GTR Series 1 - RBLOOM3 - 6pin igniter delete small 2pin black power
- R33 GTST Series 2 - RBLOOM4 - 8pin harness connector
- R34 ALL VARIANTS - RBLOOM4 - 8pin harness connector
- RB UNIVERSAL - RBLOOM6 - DT8 Deutsch connector end
- RB CEFIRO LAUREL - RBLOOM7 - CUSTOM MADE TO ORDER
- RB30 SOHC - RB30LOOM - to suit R35 coils only
Customer Reviews
I was experiencing misfires for a while and changed out spark plugs, coil packs, and MAF sensor and arrive at the conclusion that it everything (considering it's a 25 year old car xP) but the installation was relatively easy considering I rounded a bolt for a ground wire. Can be installed without taking off the intake manifold on ER34 RB25DE Neo but if you have big hands but be a struggle.
This is an excellent quality replacement. There wasn't includedinstructions for where the additional ground was to go but upon calling and asking I had an answer straight away from the first person who picked up the phone 🤯
Incredible service. 😀👍🏼👌🏻
